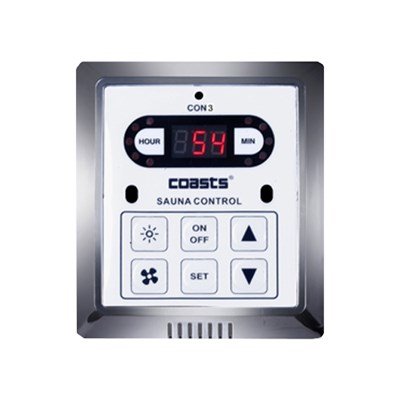

Standard series large ground-mounted sauna heaters equips with wall-mounted digital control panel ( CON3 or CON4)
Model:SAM-B10 ,SAM-B12,SAM-B15,SAM-B18,SAM-B21,SAM-B25
The output power covers 10.5 to 24kw, normally requires 380~415V three phases power supply. Stainless steel constructions.
Because of the durable construction, steady performance and easy operation, the Standard SAM-B series sauna heater is widely used in Commercial sauna bath.
technical data:
|
Model |
Output power kW |
Power supply 50/60Hz |
Current A |
Power wire (copper) N*mm2 |
Dimensions cm |
Packing size cm |
Gross weight kg |
|
SAM-B10 |
10.5 |
380-415V3N～ |
16 |
5*2.5 |
49*56*65 |
51.5*57*68 |
26-27 |
|
SAM-B12 |
12.0 |
18.2 |
5*2.5 |
||||
|
SAM-B15 |
15.0 |
22.7 |
5*2.5 |
||||
|
SAM-B18 |
18.0 |
27.3 |
5*4.0 |
70*56*65 |
72.5*57*68 |
37-39 |
|
|
SAM-B21 |
21.0 |
31.8 |
5*6.0 |
||||
|
SAM-B25 |
25.0 |
40.9 |
5*10.0 |
||||
|
Notice ：SAM-B series only available in 380-415V3N～ |
|||||||

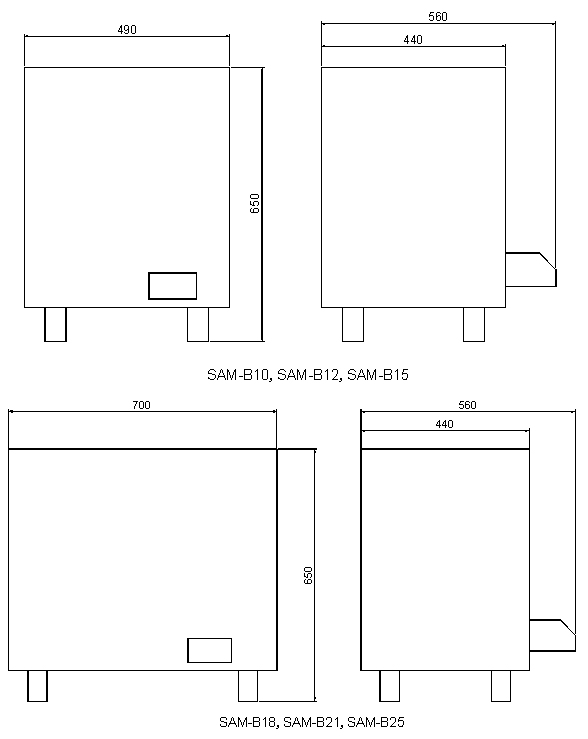

Dimension chart
