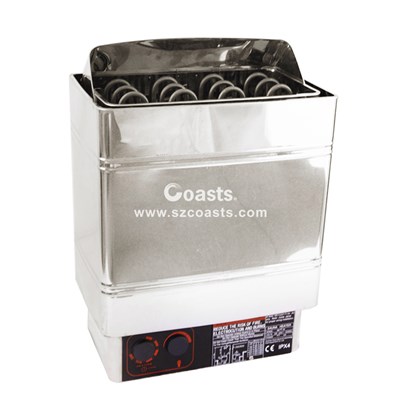

This model is wall-mounted inner control sauna heater
Model: AM30MI.AM45MI.AM60MI.AM80MI.AM90MI
This type adopts mechanical internal control methods to achieve time and temp control; power range between 2KW-9KW,voltage configuration of 220-240V or 380-415V3N. with high temperature furnace galvanized internal plate, shell plate spray fluorocarbon by electrolysis, Use high quality heating resistance, high thermal-efficiency, corrosion resistance, long life circle. easy to install and operate, Advanced processing technology, beautiful and strong appearance, stable and reliable performance. Preferred by our customers because of its high value, this type engaged a large proportion in the sauna market, widely used in homes and medium sized sauna clubs within 13m3 areas. This series obtained CE certification and passed the China Import and Export Commodity Inspection Bureau testing.
Parameter：
|
Model |
Output power kW |
Power supply 50/60Hz |
Current A |
Power wire (copper) N*mm2 |
Dimensions cm |
Packing dimensions cm |
Gross weight kg |
|
AM30MI |
3.0 |
220-240V～ |
13.6 |
3*2.5 |
41*28*57 |
41.5*28.5*59.5 |
11-12.5 |
|
380-415V3N～ |
4.6 |
3*1.5 |
|||||
|
AM45MI |
4.5 |
220-240V～ |
20.5 |
3*2.5 |
|||
|
380-415V3N～ |
6.8 |
5*1.5 |
|||||
|
AM60MI |
6.0 |
220-240V～ |
27.3 |
3*4.0 |
|||
|
380-415V3N～ |
9.1 |
5*1.5 |
|||||
|
AM80MI |
8.0 |
220-240V～ |
36.4 |
3*6.0 |
|||
|
380-415V3N～ |
12.1 |
5*2.5 |
|||||
|
AM90MI |
9.0 |
220-240V～ |
40.9 |
3*10.0 |
|||
|
380-415V3N～ |
13.6 |
5*2.5 |

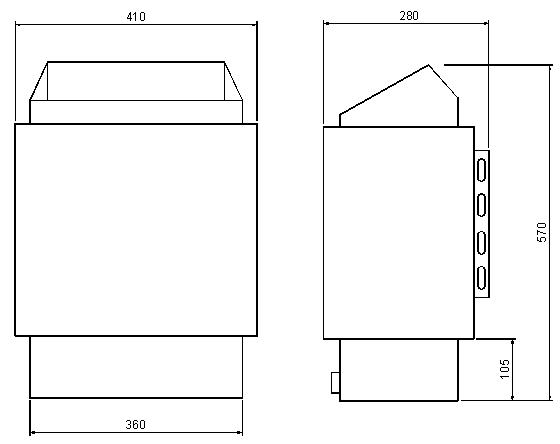

Dimension Chart:
