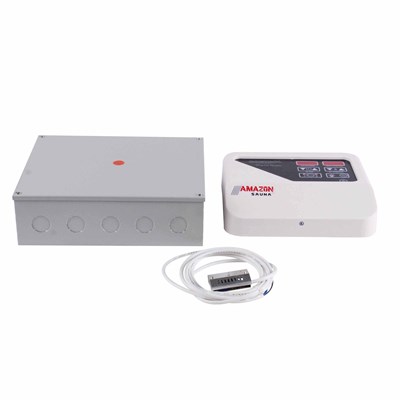

The models of wall-mounted sauna
stove, equipped external controller CON4
Model: AM30A.AM45A.
The model is mini type with delicate design and compact structure,
Adopted Electronic external controller to achieve time and
temperature control, with high temperature furnace galvanized
internal plate, shell plate spray fluorocarbon treatment by
electrolysis, using high-quality resistance, high
thermal-efficiency, fast heating, corrosion resistance, long life,
fine craftsmanship, beautiful and durable, easy to install, easy to
operate, stable performance, safe and reliable. Usually suitable
for sauna area within six cubic meters of families and
small sauna club to use.
Parameters：
|
Model |
Output power kW |
Power supply 50/60Hz |
Current A |
Power wire (copper) N*mm2 |
Dimensions cm |
Packing dimensions cm |
Gross weight kg |
|
AM30A |
3.0 |
220-240V～ |
13.6 |
3*2.5 |
30.5*20.5*48 |
31.5*22*50 |
8.3 |
|
AM45A |
4.5 |
220-240V～ |
20.5 |
3*2.5 |
30.5*24.5*48 |
32.3*27.5*50.5 |
9.7 |
|
380-415V3N～ |
6.8 |
5*1.5 |
notes:AM30A and AM45A equipped with CON4

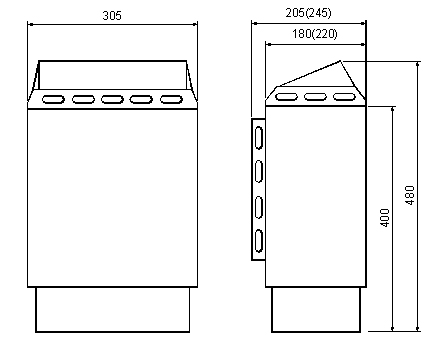

外形结构图:
